Wear-Resistant High Alloy HDD Drill Bit with Signal Probe Loading Protection and Non-Metal Signal Transmission Slot

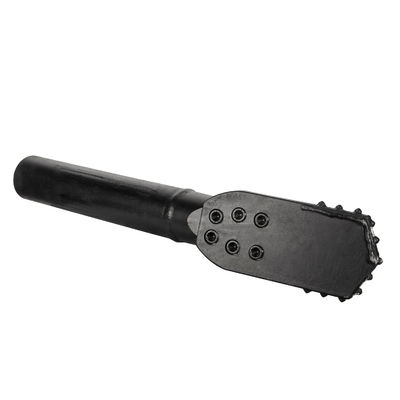

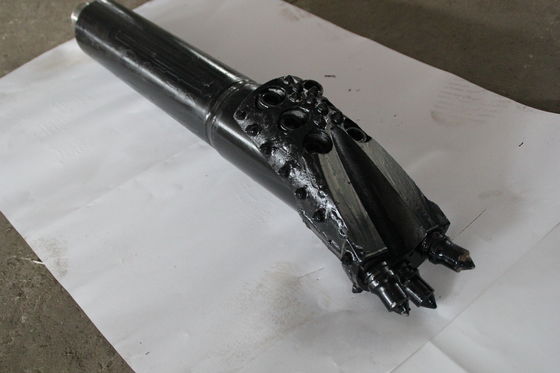

大画像 : Wear-Resistant High Alloy HDD Drill Bit with Signal Probe Loading Protection and Non-Metal Signal Transmission Slot

商品の詳細:

起源の場所:	中国
ブランド名:	Longway
証明:	ISO9001

お支払配送条件:

最小注文数量:	1
価格:	negotiable
パッケージの詳細:	クライアントのニーズに応じて
受渡し時間:	異なったプロダクトおよび目録に従って調節される20-30仕事日、
支払条件:	T/T

連絡先

Wear-Resistant High Alloy HDD Drill Bit with Signal Probe Loading Protection and Non-Metal Signal Transmission Slot

説明

ハイライト:

Wear-Resistant High Alloy HDD Drill Bit

Signal Probe Loading Protection HDD Drill Bit

Non-Metal Signal Transmission Slot HDD Drill Bit

Drill Head / Drill Bit

Product Description

Drilling claw adopts wear-resistant high alloy and wear-resistant welding technology
Signal probe loading and unloading protection design for convenient operation
Signal transmission slot closed with non-metal material for strong signal penetration
Evenly distributed signal transmission slots prevent interference during rotation
Directional Positioning Slot design for precise signal bar positioning

Technical Specifications

Type	Type of threads (K)	External diameter (B)	Carbon storehouse size (L)	Weight (KG)
73 Drill Head Series	50 Drill pipe threads	Φ73	380	17
83 Drill Head Series	60 Drill pipe threads	Φ83	380/480	23/27
83 Drill Head Series	83 Drill Head Series	Φ83	380/480	25/29
88 Drill Head Series	76 Drill pipe threads	Φ88	380/480	26/30
93 Drill Head Series	83 Drill pipe threads	Φ93	380/480	32/36
108 Drill Head Series	89 Drill pipe threads	Φ108	380/480	44/48
127 Drill Head Series	102 Drill pipe threads	Φ127	380/480	73/78
168 Long Drill Head Series	127 Drill pipe threads	Φ168	480	150
194 Long Drill Head Series	140 Drill pipe threads	Φ194	480	270

Key Features

Formation compatibility: suitable for sand and medium to very hard soil
Structure: steel casing with welded construction
Connection with drill rod: octagonal connection for direct attachment
Connection with laid pipe: compatible with both internal and external swivel configurations

Frequently Asked Questions

What is your delivery time?

Our standard production time is approximately 20 days. For items in stock, we can ship within 3 business days.

How do you ensure product quality?

We conduct rigorous quality inspections and performance tests on every drill rod prior to shipment to guarantee reliability and durability.

Do you accept sample orders?

Yes, we welcome sample orders as an opportunity for you to evaluate our product quality before committing to larger quantities.

Are your drill pipes heat-treated?

Yes, all our drill pipes and casings undergo professional heat treatment to enhance their structural strength and operational performance.

Do your drill pipes have anti-rust protection?

Yes, each drill pipe and casing receives anti-rust paint or anti-corrosion oil coating before shipping. Galvanized options are available upon request.
