Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses

Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses
Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses
Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses

大画像 :  Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses

商品の詳細:
起源の場所: 中国
ブランド名: Longway
証明: ISO9001
モデル番号: LXD200
お支払配送条件:
最小注文数量: 1
価格: negotiable
パッケージの詳細: クライアントのニーズに応じて
受渡し時間: 異なったプロダクトおよび目録に従って調節される20-30仕事日、
支払条件: T/T
供給の能力: 異なったプロダクトおよび目録に従って調節される20-30仕事日、
連絡先

Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses

説明
ハイライト:

Six Sided Pipe Rehabilitation Jacking System

,

Multi Directional Pipe Rehabilitation Jacking System

,

Pipeline Local Repair

Six-sided Pipeline Expander Pipe Rehabilitation Jack Hexagonal Head Jack Trenchless Drilling Tool
Product Description

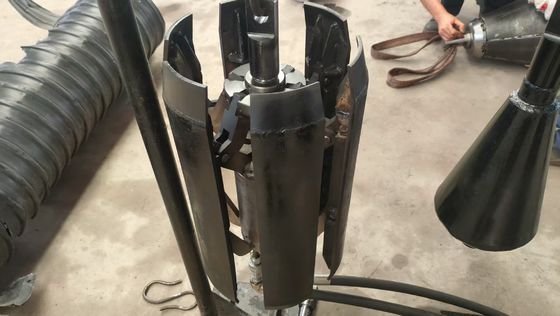

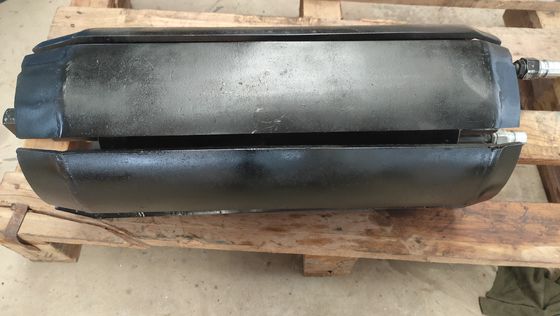

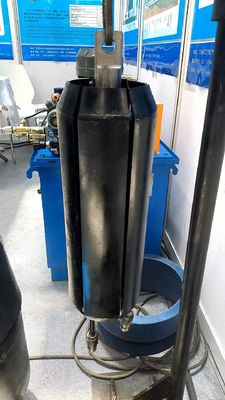

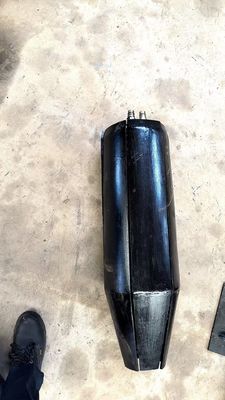

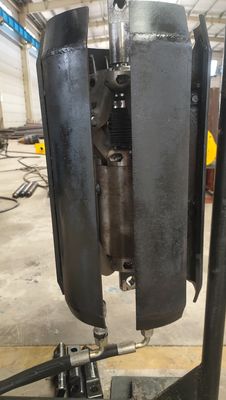

The six-sided expander is designed for rapid trenchless repair of localized pipe collapses. This innovative technology positions jacking equipment precisely at the collapse site via traction, using hydraulically driven, synchronously expanding jack plates to restore pipe integrity.

Key Features
  • Six-sided Synchronization: Hydraulic expansion plates operate simultaneously at equal frequency and pressure for uniform force distribution
  • Automatic Centering: Self-aligning mechanism ensures perfect concentricity with existing pipe
  • Superior to Traditional Methods: Eliminates stress concentration and secondary damage risks of two-point expansion systems
  • Adjustable Diameter: Modular design covers DN200 to DN700 specifications for various pipe types
  • Cost-Effective Solution: Single-point repair eliminates excavation and relining requirements
Application Scope

Trenchless repair of localized collapses, deformations, and misalignments in:

  • Corrugated pipes
  • PE pipes
  • Corrugated steel pipes
  • Steel-reinforced pipes
  • Spiral-wound solid-wall pipes
  • Thin-walled steel pipes

Ideal for urban underground water supply/drainage, gas, power, and communication networks.

Technical Specifications
No. Item Unit LXD200 LXD280 LXD315 LXD420 LXD560
1 Rated power KN 65 105 165 250 290
2 Hydraulic station power KW 1.5 2.5 2.5 4 4
3 Rated working pressure MPa 25 25 25 25 25
4 Minimum diameter after contraction mm 120 160 200 260 275
5 Maximum diameter after expansion mm 200 280 315 420 560
6 Suitable pipe diameter mm 150-200 200-280 250-315 300-420 350-560
7 Weight kg 15 30 50 90 130
8 Top surface length mm 300 400 410 515 630
9 Main unit length mm 348 465 495 645 740
Six-sided Pipeline Expander for Uniform Circumferential Force and Structural Rehabilitation of Localized Pipe Collapses 0
Frequently Asked Questions
What is your delivery time?

Our standard production time is approximately 20 days. For items in stock, we can ship within 3 business days.

How do you ensure product quality?

We conduct rigorous quality inspections and performance tests on every drill rod prior to shipment to guarantee reliability and durability.

Do you accept sample orders?

Yes, we welcome sample orders as an opportunity for you to evaluate our product quality before committing to larger quantities.

Are your drill pipes heat-treated?

Yes, all our drill pipes and casings undergo professional heat treatment to enhance their structural strength and operational performance.

Do your drill pipes have anti-rust protection?

Yes, each drill pipe and casing receives anti-rust paint or anti-corrosion oil coating before shipping. Galvanized options are available upon request.
